New Bosch Equipment

• 15.0 Amp Motor, 1,400 BPM
• Impact Energy: 43 ft. lbs.
• Plug-in-anywhere – no compressor needed
• Total portability – operates on 115/120V AC/DC, 15 Amp outlet or 2,500 watt generator
• Service Minder™ brush system – shuts the Brute off when maintenance is required
• Shock-mounted handles – absorbs vibration to reduce operator fatigue
• 2-way tool retainer – accepts standard 1-1/8” hex, air tool steel with retaining collar or Bosch internal locking combo steel

Demolition, electrical, remodeling, plumbing and HVAC contractors will truly appreciate the performance these Bosch demolition hammers offer. Two to three pounds lighter than a combination hammer, Bosch demolition hammers remove 350 to 400 pounds of 5000 PSI concrete per hour. A typical 1 1/2-inch combination hammer removes 175 to 225 pounds per hour. And since time is money, professionals appreciate the difference this makes to their bottom line.

Model	11316EVS	11317EVS	11318EVS	11387	11388
Drive System	SDS-max™	3/4” Hex	SDS-max™	Round-Hex	SDS-max™
Amperage	14.0A	12.8A	11.0A	10.0A	10.0A
Impact Energy (ft. lbs.)	4.4-18.4	4.0-16.5	8.85.9	5.9	5.9
No-Load BPM	900 - 1,890	850 - 1,800	1,300 - 3,300	2800	2800
Weight	22.5 lbs.	22.0 lbs.	12.5 lbs.	12.0 lbs.	11.6 lbs.
Tool-Free Bit/Steel Changes	YES	YES	YES	YES	YES
Service Minder™ Light	YES	YES	YES	-	-
360º Auxiliary Handle	YES	YES	YES	YES	YES
Vario-Lock™ Positioning	YES	YES	YES	YES	YES

Variable-speed dial - for controlled chipping applications
Service Minder™ light - indicates when preventive maintenance is required
360° Auxiliary handle - provides a wide range of movement along with operator comfort
Vario-Lock™ positioning - Rotates and locks chisel into 12 different positions to optimize working angle

• Two-speed gear box – for high-speed or high-torque applications
• Two modes of operation – rotation only or hammer drill mode
• 360° Auxiliary handle with built-in depth gauge - provides a wide range of movement along with consistent drilling depth
• Variable-speed reversing trigger w/lock-on – for accurate bit starting as well as removing fasteners or bound bits
• v - compact ergonomic design with soft grip

• Two-speed gear box – for high-speed or high-torque applications
• Steel reinforced collar enhances durability and protects tool
• Variable-speed reversing trigger w/lock-on – for accurate bit starting as well as removing fasteners or bound bits
• Unibody power train maintains alignment between clutch, gearbox, and motor for the most durable drivetrain system on the market
• Ratcheting, single-sleeve 1/2” chuck with carbide jaws – For one-handed operation

SDS-plus® Cordless Rotary Hammers come complete with
• Battery*
• Charger
• Auxiliary Handle
• Depth Gauge
• Carrying Case
*11524 includes two batteries.

With professional drilling speed and longer run time, these durable cordless rotary hammers are ideal for maintennance and service trucks. A must-have when power is unavailable or hard to get to.

Model	11225VSRH	11524
Voltage	24V	24V
Battery Amp Hour	3	2.4
No Load RPM	0 - 1,200	0 - 1,200
No Load BPM	0 - 4,400	0 - 4,400
Impact Energy (ft. lbs.)	1	1.5
In Concrete	7/8”	7/8”
In Steel	1/2”	1/2”
In Wood	3/4”	3/4”
Length	13”	11.5”
Weight (lbs.)	9.2	9.2

Brute-Tough™ Features:
• Steel reinforced collar - Enhances durability and protects tool when dropped on the chuck
• Unibody powertrain - Maintains alignment between clutch, gearbox, and motor for the most durable drivetrain system on the market
• Dura-shield ™ housing - Constructed to withstand real world conditions
• Two-speed gearbox optimized for two modes of operation - High-torque and high-speed mode
• Ratcheting 1/2” single sleeve chuck - For one-handed operation
• Built-in overload protection - To extend motor life under the toughest applications
• Fully adjustable auxiliary handle with extra bit storage
• Snap hook to carry or secure tool
• Ergonomic soft grip handle design

Their power-to-weight ratio makes these handheld cutoff machines the optimal tool for cutting large stock and bulk metal with ease. Reversible fire position enables the tool to be easily changed to fire reverse position without any additional accessories. Bosch cutoff machines are designed so that the wheel rotation naturally carries sparks, dust and debris away from the operator. A large footplate, smooth on both sides for guiding, improves stability and allows greater depth of cut.

AC/DC capability extends the versatility of the tool by working from DC outlets such as welders and generators as well as standard 120 Volt AC power. Reinforced armature windings protect the motor against abrasive dust and metal debris A wrap-around side handle mounts left or right for added convenience and versatility.

Benchtop Cutoff Machine Features:

Superior motor insulation - Extra motor over-load protection during tough applications
Locking vise with quick release - Holds awkward material stable for fast and efficient cutting
Adjustable fence - Adjusts for bevel cuts ranging from 0-45°
Trigger with lock-on - For extended use applications
Spindle lock - For quick wheel changes
Ball and roller bearing construction - Smooth power transmission and extended tool life
Adjustable depth stop - Takes the guesswork out of cutting specific depths
Precision helical steel gears - Quality engineering and construction ensures longer life

Features:
Precision rip fence with patented “square-lock” technology for accuracy with every cut
Constant Response™ Circuitry constantly monitors torque demand and instantly delivers additional power, plus protects against overload
Large machined & coated aluminum table top 29”x21-1/2” easily handles bigger stock
Integrated cutting rail system extends to a full 25” rip cutting capacity
Arbor lock allows single wrench blade changes

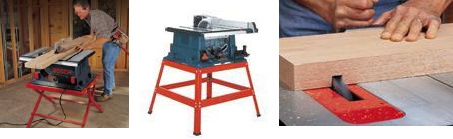

Available Table Saw Stands
Folding Portable Stand Fixed-Base Stand

Cut a Clean, Straight Dado, The First Time, Every Time!
